SE1200 EXPRESS BASIC 12 LEAD NO TCH COLOR SCREEN

SE1200EXB

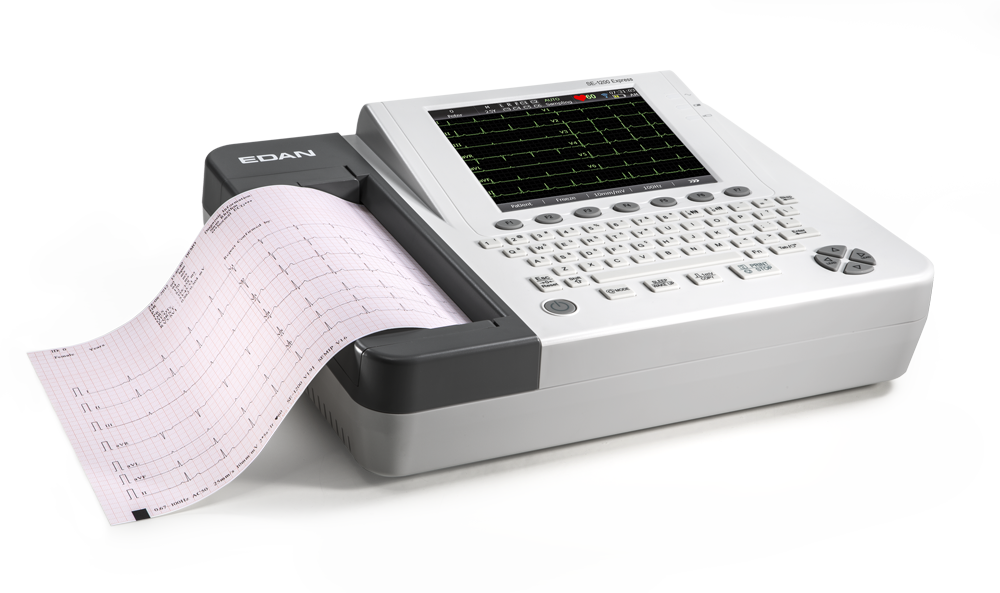

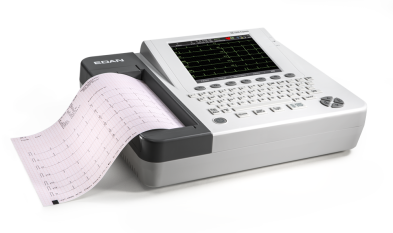

The EDAN SE-1200EXP is a 12-channel electrocardiograph designed for accurate ECG acquisition, analysis, and reporting. Featuring an 8-inch high-resolution color display, built-in Glasgow interpretation, and flexible printing capabilities, it provides an efficient and user-friendly solution for clinics, physician offices, and hospitals. Optional LAN and Wi-Fi connectivity support integration with EMR, HIS, and PACS systems for streamlined data management and report sharing.
EACH (1)

Specifications

Specifications


• Display: 8" High-Resolution Color LCD • ECG Acquisition: Simultaneous 12-Lead • Interpretation: Built-in Glasgow Interpretation • Internal Storage: Up to 800 ECG Records • External Storage: USB Flash Drive Support • Printer: Built-in Thermal Recorder • LAN Connectivity: Optional • Wi-Fi Connectivity: Optional • Export Formats: PDF Standard; SCP, FDA-XML and DICOM Optional • Battery: Internal Rechargeable Battery • Power Supply: 100–240 VAC, 50/60 Hz

Additional Info

Additional Info


• Simultaneous 12-lead ECG acquisition • 8" high-resolution color display • Alphanumeric keyboard • One-touch operation with age and gender shortcuts • Automatic ECG measurement and interpretation • Built-in Glasgow interpretation • ECG signal quality indication • 120-second waveform freeze and review • Advanced anti-noise filtering technology • Arrhythmia-triggered extended rhythm printing • Built-in high-resolution thermal printer • Internal storage for up to 800 ECG records • USB flash drive support • Internal rechargeable battery • PDF export capability • Optional LAN and Wi-Fi connectivity
